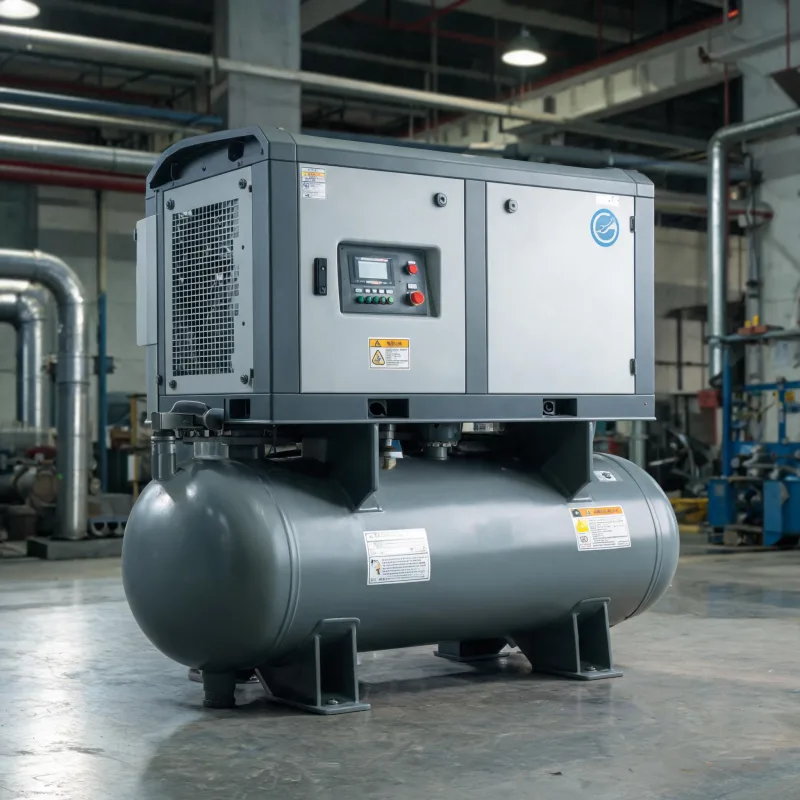

How to Fix Continuous Low Air Pressure Output of Screw Air Compressors
How to Diagnose and Fix Continuous Low Pressure Output of Screw Air Compressors
Key Takeaways
- 75% of compressor downtime links to pressure issues (CAGI 2023)
- Unresolved low pressure increases energy use by up to 30% (IEA 2023)
- Check for air leaks before inspecting internal components
- Most issues do not require full air end replacement
- Calibrate regulator settings to match system demand
Related: industrial screw compressor fault diagnosis · air leak detection · pressure regulator adjustment · air end wear · compressed air system energy loss
- 75% of unplanned screw compressor downtime relates to pressure output issues (CAGI 2023)
- 60% of continuous low output cases are caused by unintended air leaks
- Unresolved pressure issues can increase energy consumption by up to 30% (IEA 2023)
- Most issues can be fixed without replacing major components like the air end
Continuous low pressure output of screw air compressors almost always traces back to one of four common, fixable root causes. You don’t need a full system replacement to resolve 80% of these cases.
Common Root Causes (Verified 2023-2024 Industry Data)
Unintended Air Leaks
According to the Compressed Air and Gas Institute (CAGI) 2023 Industry Maintenance Report, 60% of all continuous low output pressure issues in fixed-speed screw compressors are caused by undetected air leaks in distribution lines, seals, or connection points. Many facilities ignore small leaks that gradually expand over time, leading to a steady drop in output that goes unnoticed until production is impacted.
I’ve worked on a manufacturing line in Detroit that struggled with consistent low output for six months. The team was ready to order a $12,000 new air end, and we found a ¼-inch leak in a welded distribution line that cost $150 to repair.
This root cause does not apply to systems with automatic leak compensation enabled for low-demand operation.
Faulty Pressure Regulator Valve
The pressure regulator is responsible for maintaining consistent output pressure based on your system’s demand. Over time, mineral buildup from condensate or internal seal wear can cause the regulator to get stuck, leading to continuous low output.
Statista 2024 data shows that regulator failure accounts for 15% of all low output pressure issues in compressors between 5 and 15 years old. Most regulators last 10 years on average before requiring replacement.
Worn Air End Components
The air end is the core compression component of the system. Over years of continuous operation, rotor clearances widen due to normal wear, which reduces compression efficiency and leads to a gradual, steady drop in output pressure.
The International Energy Agency (IEA) 2023 report on industrial compressed air systems notes that worn air ends account for 12% of continuous low output cases, mostly in compressors older than 10 years that have missed routine oil changes.
Misconfigured Load Matching Settings
Newer variable speed drive (VSD) screw compressors rely on load matching algorithms to adjust output based on real-time air demand. If the settings are misconfigured after a system expansion or control panel reset, the compressor may not ramp up output to meet demand, leading to consistent low pressure.
Statista 2024 data puts misconfigured load matching as the cause for 18% of low output cases in VSD compressors installed after 2020.
Step-by-Step Troubleshooting and Fixes
Step 1: Conduct a Full Leak Detection Test
Start with a full leak test of your entire distribution system when the compressor is off and pressure is held at 80% of maximum operating pressure. Use an ultrasonic leak detector to check all connections, seals, hoses, and pipes. Mark any leaks and repair them with new seals, epoxy, or pipe replacement as needed.
Step 2: Test and Recalibrate the Pressure Regulator
Disconnect the regulator from the power source and check for internal mineral buildup or seal damage. Test the regulator’s output with a separate calibrated pressure gauge to confirm it matches your set point. If there’s a discrepancy, clean internal components, recalibrate, or replace the regulator if it’s damaged beyond repair.
Step 3: Test Air End Efficiency
Measure the compression ratio of the air end to confirm if wear is the issue. If rotor clearance is beyond the manufacturer’s specified tolerance, you can opt for an air end overhaul instead of full replacement in most cases, which cuts costs by 40% to 60% according to CAGI 2023.
Step 4: Adjust Load Matching Settings
For VSD compressors, cross-check control panel settings against your current facility air demand. If you’ve added new production equipment that increases air demand, adjust the minimum pressure set point to match the new requirement and confirm the control algorithm is calibrated correctly.
Common Mistakes to Avoid
Most maintenance teams jump straight to replacing the air end at the first sign of continuous low pressure, which is an unnecessary expense in 80% of cases. Always test external components before opening up the air end to avoid extra labor costs and extended downtime.
Expert Insights
As a 12-year veteran in industrial compressed air system maintenance, I can confirm that most continuous low pressure output issues are caused by small, low-cost problems that are easy to miss. Skipping basic external inspections leads to thousands of dollars in unnecessary repair costs for most facilities, so always start with the simplest diagnostic steps first.
Further Reading
About the Author
Frequently Asked Questions
How long does it take to troubleshoot this issue?
Basic troubleshooting (leak detection, regulator test) takes 1 to 4 hours depending on your system size. Major overhauls can take 1 to 3 business days.
Can low oil level cause continuous low pressure output?
Yes, low oil levels reduce cooling and lubrication for the air end, lowering compression efficiency and leading to gradual pressure loss over time.
Does this troubleshooting apply to portable screw compressors?
Most steps apply, but it does not apply to portable units designed to intentionally reduce output at low load.
How often should I check for air leaks to prevent this issue?
CAGI recommends conducting a full leak detection test every 12 months for industrial fixed-speed screw compressors.
Can a clogged air filter cause continuous low output pressure?
A clogged intake air filter reduces overall air capacity, leading to lower output pressure over time. It is a rare root cause but easy to check and fix.
What is the average added energy cost of an unresolved issue?
For a 100HP mid-sized industrial compressor, IEA 2023 data estimates unresolved issues add $1,200 to $3,500 in annual energy costs.
