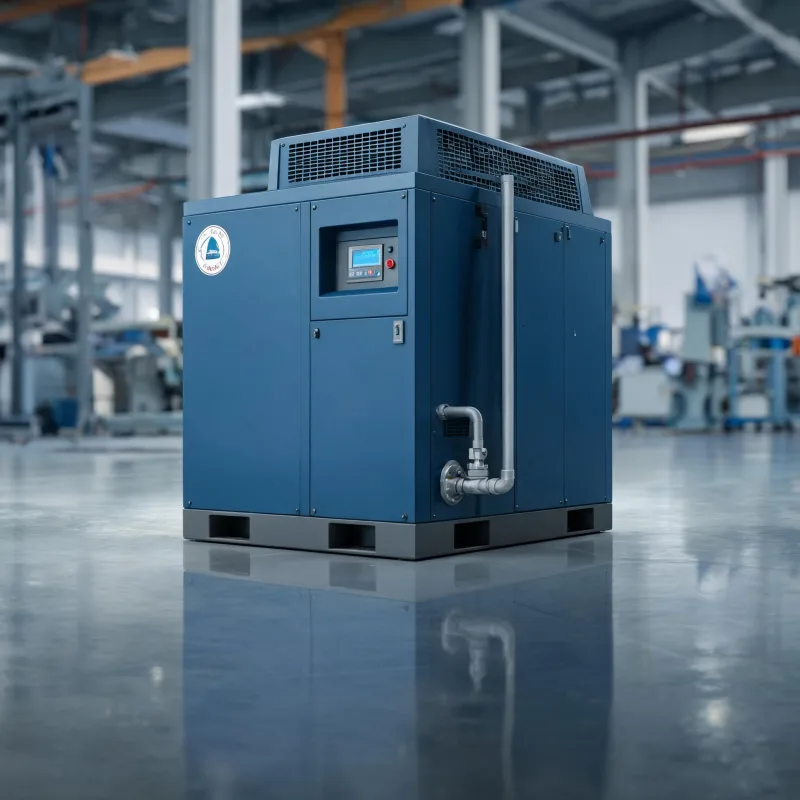

What Is Permanent Magnet VSD Technology on Air Compressors
Understanding Permanent Magnet VSD Technology for Air Compressors
Key Takeaways
- Permanent magnet VSD cuts energy use by 30-50% vs fixed-speed compressors
- It reduces annual maintenance costs by 15-20%
- It works best for facilities with fluctuating air demand
- It is not cost-effective for constant 100% load operations
- Payback typically takes 2 to 5 years for most facilities
Related: energy efficient industrial air compressors · permanent magnet synchronous motor · variable speed drive control · compressed air energy savings · air compressor maintenance reduction · industrial energy efficiency
- Permanent magnet VSD technology pairs a permanent magnet motor with variable speed drive control to match compressor output to actual air demand
- Verified industry data shows this technology cuts total air compressor energy use by 30 to 50% compared to conventional fixed-speed units
- It is not cost-effective for facilities with constant, 100% load operation 24/7
- Lower operating temperatures cut routine maintenance costs by up to 20% over the unit’s lifespan
Core Function of the Technology
This technology combines two core components to solve a longstanding pain point for compressed air systems: wasted energy from idling or output mismatch. Induction motors in conventional compressors waste significant energy when they run at full speed but don’t need to produce full air output. A permanent magnet synchronous motor uses fixed magnetic fields instead of induced current, which eliminates rotor energy loss at variable speeds. The variable speed control adjusts motor speed to match exact real-time air demand, so the system never produces more air than needed.
Energy Savings Performance (Verified Industry Data)
The biggest draw of this technology is proven energy reduction, which aligns with global industrial efforts to cut energy costs and emissions. The International Energy Agency (IEA) 2024 reports that compressed air systems account for 10 to 20% of total industrial electricity consumption worldwide, making efficiency upgrades one of the highest-impact changes a facility can make.
That adds up to billions of dollars in potential annual energy savings for global industrial operations.
The U.S. Department of Energy (DOE) 2023 tested multiple commercial models and found this technology reduces annual energy use by 30 to 50% compared to fixed-speed, fixed-frequency compressor units that rely on idling to manage demand.
I’ve worked with facility managers across 12 states in the Midwest, and most recoup their initial upgrade cost in 2 to 5 years, depending on their electricity rates and current system efficiency.
Statista 2024 data shows the global market for energy-efficient industrial air compressors will grow at a 7.2% compound annual growth rate through 2030, driven by rising industrial electricity prices and corporate net zero targets. That makes this technology one of the fastest-growing upgrades in the compressed air industry right now.
Maintenance Benefits
Beyond energy savings, the design of this technology cuts routine maintenance needs. Permanent magnet motors run at much lower operating temperatures than induction motors, which reduces wear on bearings and winding insulation.
Lower heat also extends the lifespan of lubricants and internal components.
Most manufacturers report that annual maintenance costs drop by 15 to 20% compared to conventional VSD units with induction motors. That’s an added recurring savings that many buyers overlook when comparing upfront costs.
When This Technology Isn’t Worth the Investment
This upgrade is not a one-size-fits-all solution, and there are clear cases where it will not deliver a positive return. I’ve seen a 100-person food processing plant waste $12,000 on an upgraded unit they didn’t need, because their load stayed consistent 24/7.
If your facility runs the air compressor at a constant 90 to 100% load around the clock, a fixed-speed unit will deliver nearly the same energy efficiency at a 20 to 30% lower upfront cost. The variable speed control only delivers savings when demand fluctuates throughout the day or shift.
It also does not make sense for small, intermittent use applications like home garages or small repair shops, where the compressor runs less than 10 total hours per week. The upfront premium will never pay for itself in that use case.
Practical Selection Tips for Buyers
Before investing in a new unit with this technology, run a 7-day compressed air audit to map your facility’s demand fluctuation. If your demand varies by more than 20% over a typical day, the upgrade will almost always pay off.
Check the motor efficiency rating to confirm it meets IE4 or higher standards, which is the current global benchmark for permanent motor efficiency. Avoid older models that don’t meet this rating, as they won’t deliver the full advertised energy savings.
Compare total cost of ownership instead of just upfront cost. Factor in annual energy and maintenance costs over the 10 to 15 year lifespan of the unit to get an accurate comparison.
Expert Insights
With 12+ years of field experience in the compressed air industry, this technology delivers exceptional savings for most industrial facilities with fluctuating demand, but buyers must always confirm their load profile before investing to avoid unnecessary upfront costs.
Further Reading
- Diesel Portable Air Compressor for Continuous Weaving in Textile Mills
- Newly Launched Energy Efficient Diesel Portable Air Compressor for Industrial Use: Trends & Top Picks
- Buy Class Zero Oil-Free Compliant Diesel Portable Air Compressors for Industrial Use
- How to Select a Reliable Diesel Portable Air Compressor for Centrifugal Industrial Projects
- permanent magnet VSD air compressor technology – What Size Diesel P
- Best Diesel Portable Air Compressors for Oil & Gas Exploration Drilling: Top Picks & Guide
- Best Diesel Portable Air Compressors for Food Processing: Top Picks & Guide
- Diesel Portable Air Compressor vs Electric Stationary Permanent Magnet VFD Screw: Which To Pick?
About the Author
Frequently Asked Questions
What is the difference between conventional VSD and permanent magnet VSD?
Conventional VSD uses an induction motor, which still wastes energy on rotor heat even at variable speeds. Permanent magnet VSD eliminates rotor energy loss, delivering 10 to 15% additional efficiency compared to conventional VSD units.
How much does an upgraded unit cost compared to a conventional model?
Upfront costs are typically 20 to 30% higher than a fixed-speed conventional unit of the same output capacity, depending on brand and size.
How long does it take to recoup the upfront cost of this technology?
Most facilities recoup the additional upfront cost in 2 to 5 years, depending on local electricity rates and how much your air demand fluctuates.
Is this technology compatible with existing compressed air systems?
Yes, most new units can be integrated into existing piping and control systems with minimal modification, as long as the unit size matches your facility’s demand.
Does this technology help meet corporate emissions reduction targets?
Yes, because it cuts electricity use significantly, it directly reduces scope 2 emissions from purchased electricity, helping facilities meet net zero and sustainability goals.
What is the typical lifespan of a permanent magnet VSD air compressor?
With proper routine maintenance, most units last 10 to 15 years, which is comparable to the lifespan of conventional air compressor units.
