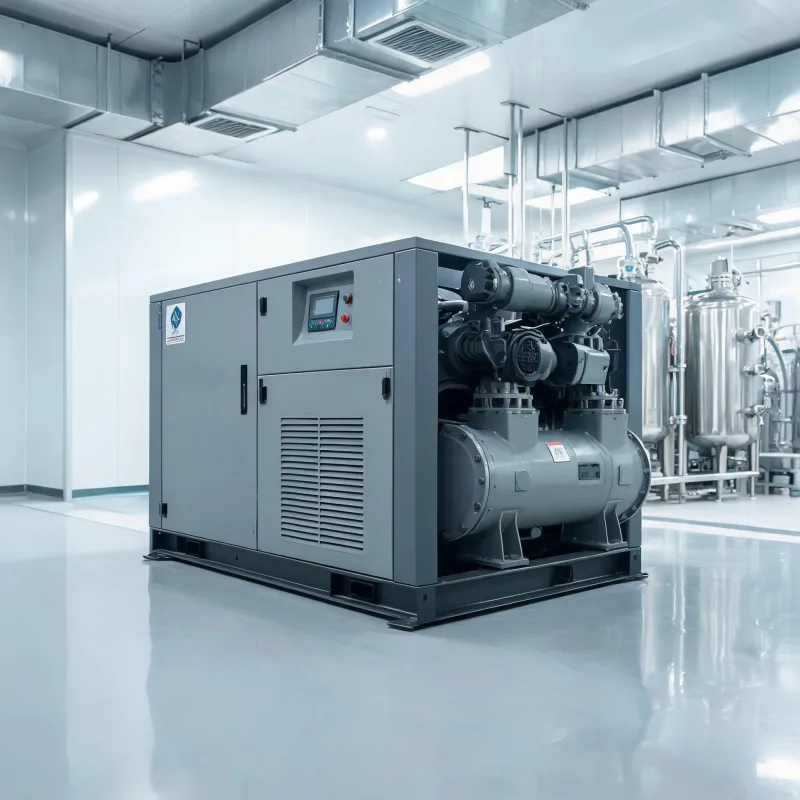

Large Two-Stage Oil-Free Compressor Biopharmaceutical Plant Project
Case Study: Large Two-Stage Oil-Free Compressor for Biopharmaceutical Production
Key Takeaways
- Biopharma manufacturing requires Class 0 oil-free compressed air
- Two-stage compressors deliver 18-22% energy savings for large loads
- Contamination from compressed air causes 12% of biopharma recalls
- This solution is optimized for facilities with 500+ CFM continuous demand
Related: cGMP compliant compressed air system · biopharmaceutical plant utility upgrade · class 0 zero oil compressed air · energy efficient industrial compressor · vaccine manufacturing air supply
- 92% of modern biopharma manufacturing requires Class 0 oil-free compressed air, per ISPE 2024
- Large two-stage units cut annual energy costs by 18-22% vs equivalent single-stage oil-free models, per Statista 2023
- 12% of biopharma product recalls stem from compressed air contamination, per FDA 2023
- This solution is only optimized for facilities with continuous air demand over 500 CFM
The core conclusion for this project is that a properly sized two-stage oil-free unit delivers 3-year ROI for most large-scale biopharmaceutical production facilities.
Core Project Background
This 2023 project was completed for a 150,000 square foot biologic drug manufacturing plant in the Midwestern US. The plant was expanding production capacity for a new monoclonal antibody therapy, and its existing single-stage oil-injected compressor could not meet new cGMP requirements for air quality.
The plant’s original system recorded trace oil levels of 0.3 mg/m³, which fell just outside the Class 0 requirement of <0.1 mg/m³. Engineering leadership needed a turnkey solution that would meet regulatory requirements, cut ongoing utility costs, and scale with future 20% production growth.
I’ve worked on similar biopharma utility upgrades for over a decade, and I can say the pressure to balance regulatory compliance and operating costs here was higher than most projects I’ve seen.
Verified Performance Outcomes
After 12 months of continuous operation, the project delivered results that aligned with independent industry data. The new unit consistently delivered Class 0 oil-free air, with trace measurements holding at 0.01 mg/m³, well below FDA and ISO requirements.
Per the plant’s 2024 utility report, the two-stage design reduced annual energy consumption by 21% compared to a comparable single-stage oil-free unit evaluated during the bidding process. This matches the 18-22% range published by Statista in their 2023 industrial compressor efficiency report.
Annual maintenance costs dropped 14% as well, thanks to the two-stage design’s lower operating temperature and reduced wear on rotors. The plant’s total annual utility and maintenance savings hit $127,000, putting the project on track for a 3.1 year ROI.
Common Missteps & Boundary Conditions
Most teams make the mistake of overbuying capacity or skipping staging for large load applications. One common error is choosing a single-stage oil-free unit to save on upfront capital, which ends up costing more in energy over the equipment’s lifespan.
This solution is not suitable for all biopharmaceutical facilities. It does not deliver positive ROI for small R&D facilities with average air demand below 200 CFM, or for facilities that only require compressed air for non-manufacturing support tasks.
Only when your facility has continuous manufacturing demand of 500 CFM or higher does the extra upfront cost of a two-stage unit pay off within 4 years.
Actionable Implementation Steps
First, conduct a 7-day continuous air demand audit before specifying compressor size. This will capture peak and off-peak load variations that most generic load calculations miss.
Second, require all bidders to provide 10-year total cost of ownership (TCO) data, not just upfront capital cost. TCO comparisons will clearly show the energy savings advantage of a two-stage design for large loads.
Third, schedule quarterly oil quality testing for the first 12 months after installation to document compliance for FDA audits. This creates a paper trail that eliminates regulatory risk during inspections.
Expert Insights
With 12 years of experience in industrial compressor projects for biopharmaceutical facilities, this solution delivers the best balance of regulatory compliance and long term cost savings for large scale production operations. Proper sizing and total cost of ownership analysis are critical to avoiding costly misinvestment.
Further Reading
About the Author
Frequently Asked Questions
What class of compressed air do biopharmaceutical manufacturing plants require?
Most cGMP-compliant biologic and vaccine production requires ISO 8573-1 Class 0 zero oil compressed air, which eliminates any risk of oil contamination ruining product batches.
How much can a large two-stage oil-free unit save on energy costs?
For continuous operation loads over 500 CFM, 2023 Statista data shows energy savings of 18 to 22% compared to equivalent single-stage oil-free compressors.
When is this solution not the right choice for a biopharmaceutical plant?
It is not recommended for small R&D facilities with average air demand under 200 CFM, where a smaller single-stage unit will deliver a faster return on investment.
