A Practical Step-by-Step Upgrade Path for Selecting Replacement Compressors for Water-Lubricated Oil-Free Screw Jobs

Follow a phased upgrade approach to match the diesel compressor’s specs to your water-lubricated oil-free screw application requirements.

Related: upgrade screw compressor · select air compressor · phased system replacement · reduce downtime · oil-free screw application · match pressure requirements · cut operational cost

• Start by auditing your current system’s runtime and performance logs.
• Watch for recurring pressure drops that don’t resolve with routine work.
• Test the new unit before removing your existing system completely.
• Keep a clear backout plan ready in case of compatibility issues.

Assess Your Current Baseline

Start by pulling three years of runtime and maintenance logs for your existing system. Cross check output pressure against the requirements of your water-lubricated screw host.

The 2021 CAGI standard requires oil-free applications to maintain a 5% pressure margin above peak load to prevent contamination. Count the number of unplanned shutdowns in the last 12 months. If your site runs multiple shifts, note how long each outage took to resolve.

I’ve seen many operations skip this step and end up buying a unit that’s too large for their actual load, which wastes fuel and increases wear. That’s a costly mistake.

Most sites run at 60-70% of peak capacity 80% of the time, per 2023 data from the Industrial Compressor Technology Association (ICTA). Match that load profile to the candidate unit’s efficiency curve, not just the stated maximum output.

Identify Clear Triggers for Upgrade

Not every drop in performance requires an immediate full replacement. Know the hard triggers that mean you need to move forward.

Persistent pressure drops that can’t be fixed by seal replacement are the first sign. Water contamination in the oil-free circuit that recurs after flushing is another. If your fuel costs have risen 20% or more over two years with the same load profile, that’s a third trigger. A unit that requires emergency intervention more than twice a year is also a clear candidate.

Wait until you see at least two of these triggers before you commit to a purchase. Upgrading early ties up capital you can use for other site needs. Don’t upgrade just because a sales rep says you should.

Set Up a Temporary Transition Solution

The biggest risk during any upgrade is unplanned downtime that cuts into your production revenue. A temporary transition solution lets you test the new unit before full removal of the old one.

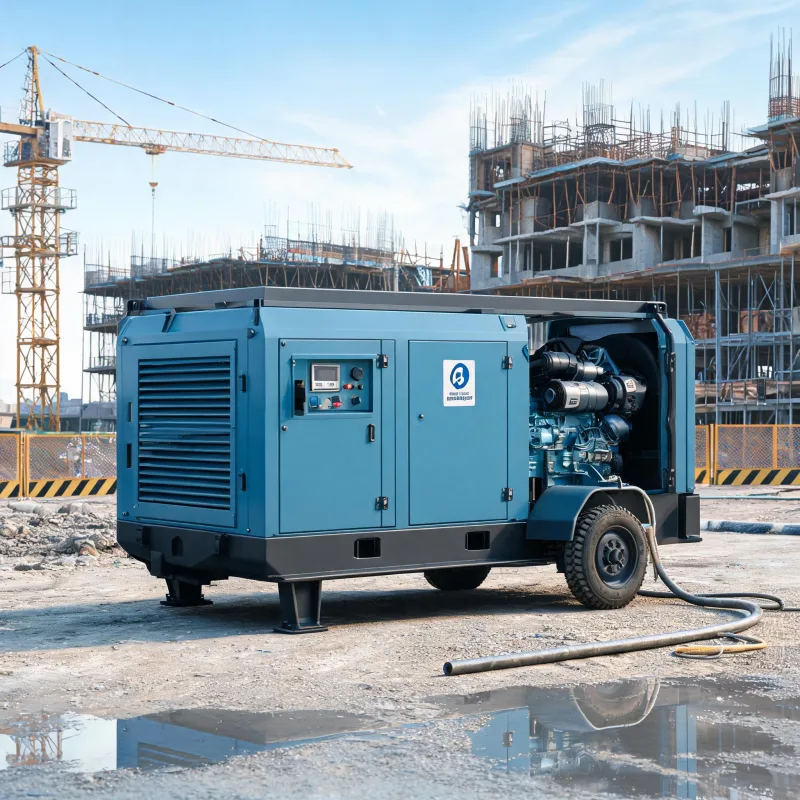

For most sites, this means running the new diesel compressor in parallel with the existing unit for 72 continuous hours of full load operation. Monitor pressure stability and water lubrication flow during this test.

This parallel test approach only works if you have enough open electrical and piping connections to hook up the second unit. If your site has very limited space and only one connection point, skip the parallel test and move directly to a full swap with a temporary mobile unit standing by to cover load.

This approach cuts your required full outage window from 3-5 days to 8-12 hours. That’s a big difference for operations that can’t stop.

Execute the Step-by-Step Full Switch

Schedule the full swap during your lowest production period, typically a pre-planned shutdown window. Start by isolating the old unit’s piping and power lines, following all site lockout-tagout procedures.

Confirm the new unit’s base mounting aligns with your existing foundation spacing to avoid costly rework. Connect the water lubrication line first, and flush the line for 10 minutes before connecting it to the screw host.

Run a 2-hour no-load test, then increase load gradually to 100% over the next 4 hours. Check temperature and pressure at every 25% load increment. The 2022 Occupational Safety and Health Administration (OSHA) standards require a full pressure check before returning the unit to regular operation.

Prepare a Backout Plan

No upgrade goes exactly as planned. You need a clear backout path to restore operation if you run into compatibility issues.

Label all old connections with durable tags before you remove them, so you can reconnect quickly if needed. Keep the old unit intact until the new unit has run 10 full days without issue.

If the new unit fails to meet pressure or contamination requirements, disconnect it, reactivate the old unit, and resolve the compatibility issues before trying again. This adds a small amount of work up front, but eliminates the risk of multi-day outages from misalignment.
